YOKO : RYK-2V85L4/2

Benefits
  • Color: 1/3" Color Sony Super HAD (Hi-Res.)
  • Dual CCD (Color & B/W) camera are exchanged automatically in day time and night time
  • Hi-Res. color camera for day time to provide true color and clear pictures.
    EX-View BW camera for night time to enhance sensitivity of low light
  • Built-in 56 pieces IR-LED
  • Effective range up to 40M
  • Weatherproofing criterion IP68
  • AC type (option)

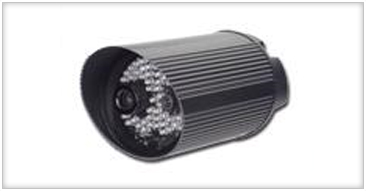

Infra-red Camera
Enlarge Image
Specifications
Image Device
:
Color: 1/3" Color Sony Super HAD (Hi-Res.)
B/W: 1/3" B/W Sony EX-View HAD
Picture Elements
:
Color: NTSC:768x494, PAL:752x582
B/W: EIA:510x492, CCIR: 500x582
Resolution
:
Color: 470 TVL , B/W: 420 TVL
Min. Illumination
:
0.1 Lux / F 2.0 (Day), 0 Lux (IR On)
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC / EIA:1/60~1/30,000,
PAL / CCIR:1/50~1/30,000
Gamma
:
0.45
Lens Furnished
:
Board Lens 8mm / F2.0 (option:12mm)
White Balance
:
Auto
Gain Control
:
Auto
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Infrared Luminary
:
56 pieces IR-LED
Wavelength
:
850 nm
Illuminate Distance
:
40 M
Waterproofing Criterion
:
IP 68
Power Supply
:
DC12V±10%, AC24V, AC100~240V (option)
Power Consumption
:
IR On: 700mA max. / IR Off: 140mA max.
Operating Temp.
:
-10℃ ~ 50℃
