YOKO : RYK 9822I

Benefits
  • MJPEG Video compression
  • Max. 120 images per second recording
  • Quad and each record image size
  • Various recording modes of manual, schedule and motion detection
  • 750GB SATA HDD support-SATA converter(option)
  • TCP/IP network connection with DHCP and Dynamic DNS support (option)
  • USB buck up

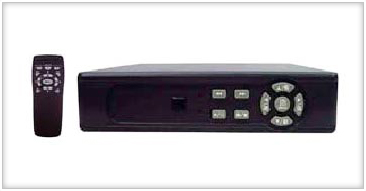

MJPEG Video compression DVMR
Enlarge Image
Specifications
Video Format
:
NTSC / EIA or PAL / CCIR
Video Compression
:
MJPEG
Video Input
:
4 CH, BNC
Video Output
:
1 CH BNC
Video Resolution
:
720x480 (NTSC), 720x576 (PAL)
Display Frame Rate
:
Max. 120 / 100 IPS (NTSC / PAL)
Display Division
:
Single, Quad
Display Resolution
:
Max. 640x224 (NTSC), 640x272 (PAL)
Recording Frame Rate
:
Max.120 / 100 IPS (NTSC / PAL)
Recording Quality
:
High / Normal / Low
Recording Mode
:
Manual / Schedule / Motion Detection
HDD Basic Storage
:
1x3.5" IDE HDD (Max. 500GB)
HDD
:
Motion Detection, Video Loss
Alarm Triggered Mode
:
Motion Detection, Video Loss
Alarm Action
:
Recording, Sound Alert
Network Ethernet
:
10/100 BaseT Ethernet (RJ-45) (for RYK-9822N)
Network Protocol
:
TCP/IP, PPPoE, DDNS, SMTP, ICMP, ARP (for RYK-9822N)
Backup Device
:
USB
Post Alarm
:
1 ~ 60 sec
Search Method
:
By Date, Time, Event
Password Protection
:
Yes
Power Supply
:
AC100~240V 50/60 Hz, DC12V / 2.5A
Weight
:
2.5 Kg (without HDD)
Dimension (WxHxD)
:
195X45X226mm
Operating enviroment
:
30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)
Remote Control
:
IR Transmission
