AVTECH : AVK015

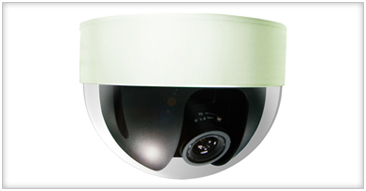

AVK015 Vari focal Dome Camera
This vari-focal dome camera series, designed for middle/high-end market, is featured with excellent performance under low Lux. Equipped with F1.4 large aperture, this camera will be the best solution for gloomy environment. Its f4.0 ~ f9.0mm vari-focal lens offers more flexibility for diverse environments. What's more, vandal-poof design makes this product withstand damages caused by external force.
Benefits
  • 1/3” Color CCD
  • F1.4 Large Aperture
  • f4.0 ~ f9.0 mm Vari-focal Lens
  • Excellent low lux performance below 0.1 Lux at F1.4
  • Vandal-proof Housing Design (IPxx7)
Vari-focal Dome Camera
Vari-focal Dome Camera<Vari-focal Dome Camera<
Enlarge Image
Specifications
Pick up Element
:
1/3" color CCD
Number of Pixels
:
512(H) x 492(V) / 512(H) x 582(V)
Resolution
:
Standard
Min. Illumination
:
Below 0.1 Lux / F1.4
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to 1/100,000 sec
Lens
:
f4.0mm ~ f9.0mm
Lens Angle
:
75° ～ 36°
Iris Mode
:
AES
White Balance
:
ATW
Vandal-Proof Rating
:
IPxx7
Video Output
:
1.0 Vp-p composite, 75Ω
Power Source (±10%)
:
DC12V
Current Consumption (±10%)
:
80mA
Dimension (mm)
:
124.3(Ø) x 92(H)
Net Weight (g)
:
460
Dimensions
avk015
