AVTECH : AVC 903


1/3" Color Vary- Focal Dome Camera
This type of the cameras is perfect for those who prefer to see different picture views without changing another lens. Built in a vari-focal lens, this dome camera helps to simplify the process of changing another lens for different viewing angles, and provides 350 TV lines resolution. A microphone is also designed for this surveillance camera.
Benefits
  • Crystal & Clear Image : 1/3" SONY CCD image sensor
  • High Resolution : Support high resolution of 350 TV lines
  • Excellent Minimum Illumination : 0.3Lux / F1.6
  • Built-in Vari-focal type : Direct drive auto iris lens, f=4.0~9.0mm F=1.6~2.4.
  • With audio function

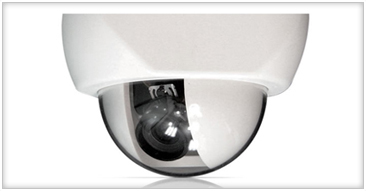

Vari-focal Dome Camera
Enlarge Image
Specifications
Pick-up Element
:
1/3" SONY Color Super HAD CCD image sensor
Number of Pixel
:
510(H)x492(V) / 500(H)x582(V)
Resolution
:
350 TV lines
Min. Illumination
:
0.3 Lux / F1.0
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to / 100,000 sec.
Lens
:
4.0mm ~ 9.0mm
Lens Angle
:
83° ～ 36°
Iris Mode
:
D.D
BLC
:
On/Off
AGC
:
Normal / Max
Flickless
:
On (NTSC : 1/100 ; PAL : 1/120) / Off
White Balance
:
ATW
Video Output
:
1.0 Vp-p composite, 75Ω
Video
:
Yes
Power Source
:
DC12V ± 10%
Current Consumption
:
100 mA ± 10%
Dimension (mm, ± 5)n
:
122(L) x 85(W) x 131(H)
Gross Weight (g)
:
365g

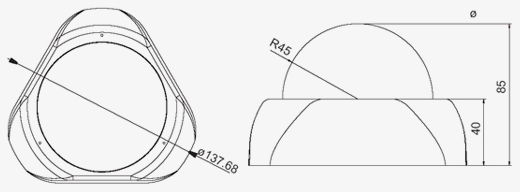

Dimensions
