(Optional) Mobile surveillance and active 3G call-out function supported
Hybrid digital / analog video output
Motion detection and alarm notification functions
External mic in / audio out for two-way voice communication
Day/night functionality
Low-latency video streaming for sharp and clear images
High quality image sensor
Complete IP surveillance system, such as the Central Management System (CMS) software,
Network-Attached Storage (NAS), Network Video Recorder (NVR), etc.
Yes (Control up to 16 network cameras simultaneously)
Video Compression
:
MPEG4 / MJPEG
Video Remote Control
:
YES
Video Adjustment
:
Brightness, Contrast, Saturation and Hue
Audio Compression
:
uLaw , 128kbps
Audio Input
:
Built-in Microphone, External Microphone Input
Audio Output
:
YES
Image Sensor
:
1/3.6" image sensor
Pixels
:
738(H) x 480(V)
Lens
:
f3.6mm
F-number
:
F2.0
Viewing Angle
:
80°
Shutter Speed
:
1/ 60 (1/50) to 1 / 100,000 sec.
IR LED
:
YES
Min Illumination
:
1 Lux / F2.0; 0 Lux (10m IR ON)
Video Output
:
1.0 Vp-p. 75Ω
BLC
:
AUTO
White Balance
:
ATW
Remote Control
:
YES
Motion Detection
:
YES
Alarm and event Notification
:
Image upload over FTP and E-mail
General I/O
:
Alarm in x1
Power
:
DC12V, 1A
Operating Temperature
:
0~40℃
Humidity
:
85%
Minimum Web Browsing Requirements
:
Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
256 MB RAM
AGP graphics card, Direct Draw, 32MB RAM
Windows XP, Windows 2000 Server, ME, 98, DirectX 9.0 or later
Internet Explorer 6.x or later

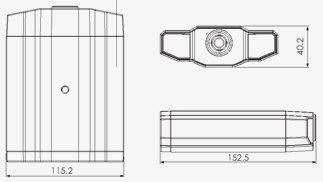

Dimension (mm)
:
152.5(L) x 115.2(W) x 40.2(H) (6.00” x 4.54” x 1.58”)
Shipping Weight
:
812g (1.79 lbs) including mounting bracket and power supply
