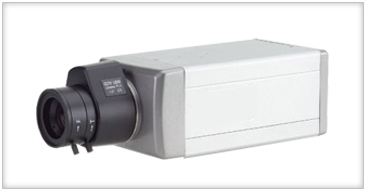

YOKO : RYK-491DR


Power Funtion of Wide Dyanamic Range Camera
Hi resolution camera with 1/3" color sony vertical double-density WD CCD supports wide dynamic rnge function (WDR),the ability to respond quickly and accurately to scenes and objects with high contrast and wide variations in light.
Benefits
  • Camera with 1/3" Color Sony Vertical double-density WD CCD
  • High sensitivity low smear high anti-blooming and high S/N ratio
  • IR Cut Filter Removable (ICR) provides change from color to B/W mode utomatically or manually for day and night 24-hour surveillance
  • On Screen Display (OSD) menu
  • Remote control via RS-485/422 (option:RS-232)
  • Compatible with PELCO D&P and LG Protocal
  • Support DC or Video Drive Lens
  • Support functions:Flickerless,Mirror,Freeze,Digital Zoom,Line Lock,Positive/Negative, Camera ID (up to 16 characters),Camera Title,Privacy Masking (8 free areas),3x Digital Zoom
  • Adjustable function: Wide Dynamic Range (WDR), Back Light Compensatin ,Gain Contral, White Balnce, Digital Slow Shutter
Regular C Mount Camera
Enlarge Image
Specifications
Image Device
:
1/3” Color Sony Vertical double-density WD CCD
Picture Ellement
:
NTSC:768x494, PAL:752x582 (HxV)
Resolution
:
470 TVL
Min. Illumintion
:
0.1 Lux / F1.2 (Day & Night On), Color 0.003 Lux /F1.2 (DSS)
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000s ON/OFF switchable
Flickerless Mode
:
On / Off (NTSC:1/100, PAL: 1/120)
Iris Control
:
Video / DC Drive
Lens Mount
:
C / CS
AGamma
:
0.45
White Balance
:
Auto / Indoor / Outdoor / Manul / Push Auto
Gain Control
:
Auto / Manual
Back Light Comp.
:
ON/OFF
Wide Dyanamic Range (WDR)
:
ON/OFF
Day & Night (ICR)
:
uto / Day / Night
Digital Zoom
:
3x
Camera ID
:
000-255
Camera Title
:
Up to 16 characters
mirror
:
Off / Horizantal / Vertical / Rotate
Freeze
:
On / Off
Positive / Negtive
:
On / Off
Digital Slow Shutter (DSS)
:
Off,2-20, 40, 80, 160 FLD
Remote Control
:
RS-485/422 (0ption:RS232)
Sync. System
:
Internal, / Line Lock
Video Output
:
1/Vp-P / 75 Ohms
Power Supply
:
DC 12V/AC24V Dual or AC100
Power Consumption
:
7W max.
Operating Temp.
:
-10℃ ~ 50℃
