AVTECH : KPC 133C


KPC133C - 1/3" Sony CCD 520TVL 21-IR Dome Camera
Benefits
  • High sensitivity in the dark environment
  • Day and night features for 24-hour surveillance
  • Excellent image quality
  • IR LED effective range reaches up to 15 meters
  • High resolution for clearer and sharper images
  • High sensitivity in the dark environment, 0.4Lux / F2.0, 0Lux (IR ON)
  • Day and night features for 24-hour surveillance
  • IR LED effective range reaches up to 15 meters

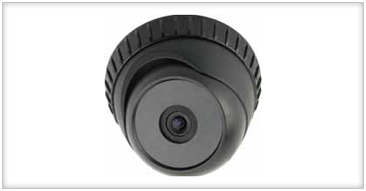

IR Dome Camera
Enlarge Image
Specifications
Image Chip
:
1/3" H.R. color CCD image sensor
Number of Pixel
:
753(H) x 582(V)
Resolution
:
520 TV Lines
Min. Illumination
:
0.4 Lux / F2.0, 0Lux (IR ON) IR LED
IR LED
:
21 units
Effective Range
:
Up to 15 Meters
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to 1/100,000 sec.
Lens Mount
:
C/CS mount changeable
Lens
:
f3.6mm / F2.0
Lens Angle
:
92.6°
Iris Mode
:
AES
White Balance
:
ATW
Video Output
:
1.0Vp-p composite, 75Ω
Power Supply (± 10%)
:
DC 12V
Power Consumption (± 10%)
:
90mA (IR OFF), 210mA (IR ON)
Dimensions (mm)
:
94.1(D) x 70.7(H)
