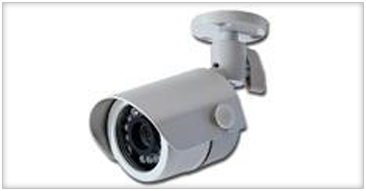

YOKO : RYK-2B49

Benefits
  • 1/3" Color Sony Super HAD IR Camera
  • 0.2 LUX
  • IR Led 12 LEDs
  • Built-in 12 pieces IR-LED
  • Effective range up to 10M
  • Weatherproofing criterion IP 67 (exclude Audio type)
  • 380TVL
Infra-red Camera
Enlarge Image
Specifications
Image Device
:
1/3" Color Sony Super HAD
Picture Elements
:
NTSC:510x492, PAL:500x582
Resolution
:
380 TVL
Min. Illumination
:
0.2 Lux
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Lens Furnished
:
3.6mm
White Balance
:
Auto
Gain Control
:
Auto
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Infrared Luminary
:
12 pieces IR-LED
Wavelength
:
850 nm
Illumination Distance
:
10 M
Power Supply
:
DC12V±10%
Power Consumption
:
IR On:292mA max., IR Off:117mA max.
Operating Temp.
:
-10°C ~ 50°C
