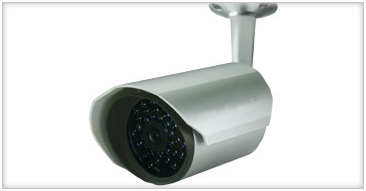

AVTECH : KPC 139B


1/3" CCD Night Vision Outdoor IR camera.
35 IR LED's. 25 metres IR range.
IP rated. Weatherproof Housing.
Benefits
  • High sensitivity in the dark environment,
    0.2 Lux / F2.0, 0 Lux (IR ON)
  • Day and night features for 24-hour surveillance
  • Excellent image quality
  • IR LED effective range reaches up to 25 meters
  • IP67, suitable for outdoor use
  • AGC, BLC, and Auto White Balance.
  • 420 TVL
Infra-red Camera
CCTV solution CCTV Solution
Enlarge Image
Specifications
Pick-up Element
:
1/3" H.R. Color CCD image sensor
Number of Pixels
:
768(H) x 494(V) / 752(H) x 582(V)
Resolution
:
520TVL
Min. Illumination
:
0.3 Lux / F2.0, 0 Lux (IR ON)
IR LED
:
35 units
IR Effective Range
:
25 Meters
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to 1/100,000 sec.
Lens
:
f3.6mm / F2.0
Lens Angle
:
92.6°
White Balance
:
QTW
AGC
:
Auto
IRIS Mode
:
AES
IP Rating
:
IP67
Video Output
:
1.0 Vp-p composite, 75Ω
Operating Temperature
:
0℃~40℃
Power Source (±10%)
:
DC12V
Current Consumption (±1)
:
90mA (IR OFF), 340mA (IR ON)
Gross Weight (g)
:
430
Dimensions (mm)
:
142(H) x 75
