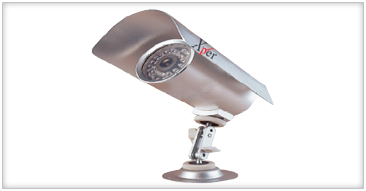

XPER : XC-15R01N

Benefits
  • Standard horizontal resolution and high quality picture
  • Sharper & Clearer Image
  • Built in Auto Electronic Shutter
  • High sensitivity in the dark environment, 0.02 Lux / F 1.2, 0Lux (IR ON)
  • Day & Night feature for 24 hours surveillance
  • IR effective range upto 20 Meters
  • IP 66 approved outdoor housing
Infra Red Cameras
CCTV camera solution in ahmedabadCCTV camera solution in ahmedabad
Enlarge Image
Specifications
CCD Type
:
1/3” Color CCD Image Sensor
Number of Pixels
:
512(H) x 492(V) / 512(H) x 582(V)
Scanning System
:
PAL / NTSC
Horizontal Resolution
:
420 TVL
IR LED
:
24 Pcs
Effective Range
:
Upto 20 Meters
Minimum Illumination
:
0.02 LUX /F1.2 /0 (IR ON)
S/N Ratio
:
≥ 48dB
Video Output
:
1.0Vp-p / 75
AGC
:
Auto
White Balance
:
Auto
Backlight Compensation
:
Auto
Exposure Mode
:
EE
Electronic Shutter
:
1/60 (1/50) to / 100,000 sec.
Gamma Correction
:
0.45
Sync. System
:
Internal Synchronization
Iris Mode
:
AES
Lens
:
6.00 mm (standard)
Power supply
:
DC12V ± 5%
Operation Temperature
:
- 10° ~ 50°
