AVTECH : AVM 208


IR Pro Camera
To satisfy the environments where low visibility is encountered and high demand of safeguard is a necessity, we’re proud to announce the presence of this new innovative IRpro series camera. Equipped with “IR Shifter”, “Smart Light Control” and a large aperture lens (F1.2 / F1.4), this camera optimizes the advantages of an IR camera to provide sharp and clear images, and smartly extends the life of an IR camera to provide great reliability.
Benefits
Smart Light Control
  • Clear and Sharp Image Without Over-exposure : Compared with conventional IR cameras to use CDS sensor only for controlling IR light, IRpro series products use both “CDS” and “Image Comparison” method to judge whether IR LEDs should be activated for light compensation
  • Longer IR LED Life : Longer IR LED Life: Because of the effective control of IR LEDs and exclusive MCU design, the IR LED life is greatly extended and reduces the cost for using this camera.


Large Aperture Lens (F1.2 / F1.4)
  • Large Amount of Light Passing Through Lens : The amount of light passing through the lens for IRpro cameras is 2 ~ 3 times more (depending on the supplied lens iris) compared with other normal cameras in the market.
  • Lower Power Consumption : Because of the large amount of light passing through the lens, IR LEDs do not need to be always on for night> surveillance. This not only reduces the power consumption, but also extends the IR LED life of your IRpro camera.


Auto IR Shifter for 24-hour Surveillance
  • Daytime : “True Color” is presented for this camera receives the same visible light as human beings can see.
  • At night : IR Shifter is moved away for the camera to receive the infrared light. Besides, the sensor sensitivity will increase up to 60%, and the brightness is also raised up because of the usage of the large aperture lens. Therefore, images can still stay in focus with clearness and sharpness for night surveillance.
  • Longer Effective Distance Up to 40~50m
  • High Resolution of 480 TV Lines to Provide Clear Images
  • Thermal Conductive Case Design for Excellent Cooling Performance
  • Water-Proof

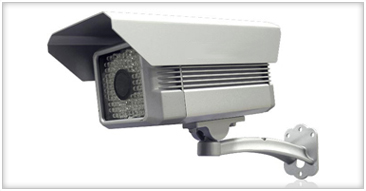

Infra-red Camera
Infra-red CameraInfra-red Camera
Enlarge Image
Specifications
Pick up Element
:
1/3" SONY Color Super HAD CCD image sensor
Number of Pixel
:
768(H) x 494(V) / 752(H) x 582(V)
Resolution
:
480 TV Lines
Min. Illumination
:
0.36 Lux / F1.2 (IR LED OFF)
Effective Range
:
40m (f6.0 mm & f 8.0 mm) / 50m (f12.0 mm)
IR LED
:
102 units
Lens
:
f6.0 mm / f8.0 mm / f12.0 mm
F-number
:
F1.2 (f12.0mm) / F1.4 (f6.0mm & f8.0mm)
Lens Angle
:
56° / 42° / 28°
Video Output
:
1.0Vp-p composite, 75Ω
IR LED Control
:
Smart Light Control
D&N Filter Control
:
Auto IR Shifter
Water Resistance
:
IP67
Operating Temperature
:
－20℃ ~ 40℃ (－4°F ~ 104°F )
Power Source
:
AC100V ~ 240V ± 10%
Power Consumption
:
25 W
Dimension (mm)
:
250mm (L) x 137mm (W) x 114.12mm (H)
Weight (kg)
:
1.92kg

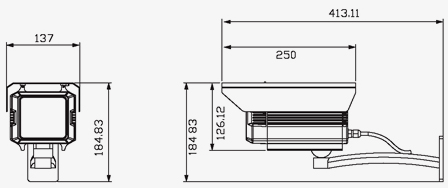

Dimensions
