AVTECH : AVC 667


1/3" SONY Color CCD IR Camera
This camera employs a 1/3" SONY color CCD image sensor, which provides extremely long life and high reliability. It offers excellent reproducibility with low lag and high burn resistance, and is not subject to distortion from magnetic fields and the camera functions reliability in wide temperature range.
Benefits
  • 1/3" SONY Super HAD Color CCD image sensor
  • 0.5Lux / F2.0; 0Lux (10 meter IR ON)
  • Standar resolution and high quality picture
  • Water Resistance: IP 67
  • IR LED: 12 units Infrared LED
  • Effective Range: Over 10 Meters
  • Automatic IR trigger-on under low illumination
  • Automatic IR off under normal illumination

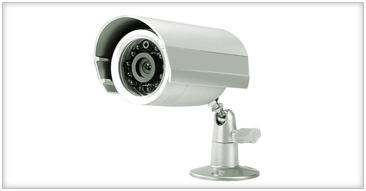

Infra-red Camera
Enlarge Image
Specifications
Pick up Element
:
1/3" SONY Super HAD Color CCD image sensor
Number of Pixel
:
510(H)x492(V) / 500(H)x582(V)
Resolution
:
Standard
Min. Illumination
:
0.5Lux / F2.0; 0Lux (10 meter IR ON)
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60(1/50) to 1/100,000 sec.
White Balance
:
Auto white balance
AGC
:
Yes
Standard Board Lens
:
F4.0 mm / F2.0
Lens Angle
:
61°
Video Output
:
1.0 Vp-p composite, 75Ω
Power Source (±10%)
:
DC12V
Current consumption
:
90 mA (IR OFF), 240 mA (IR ON)
Water Resistance
:
IP 67
IR LED
:
12 units Infrared LED
Effective Range
:
Over 10 Meters
Dimension (mm)
:
64.6 (O) x 105 (L)
Gross Weight (g)
:
550
