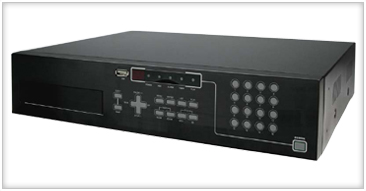

AVTECH : AVC 758D

Benefits
16CH Network DVR
Fully Remote Independent Operation
  • The operation between the local site and remote site won’t affect each other. The remote operation is fully independent

Saving HDD Capacity
  • Allows single-channel recording when a motion alarm is triggered

Multiplex
  • Allows live display, record, playback, backup and network operation at the same time

Free Upgrade to Advanced Functions
  • Allows you to upgrade DVR functions without any charges

Backup Function
  • Supports USB DVD writer, USB flash drive and network backup

Remote Surveillance
  • Supports remote surveillance up to 5 users simultaneously via the licensed software "Video Viewer", Internet Explorer or Mozilla Firefox web browser, and QuickTime player

Intelligent Motion Trigger Recording
  • Customizable security settings are achieved with the advanced motion detection, the scheduled motion detection recording (with 1 adjustable parameter), and the quick search function
  • Supports pre-alarm recording (8MB)

A/V Support
  • Supports 1 audio-in, 1 audio-out to record sounds
  • (Optional) Supports VGA output with VGA converter

Cover Recording
  • Blank screen replaces live displays to achieve covert recording

General
  • Supports multi-language OSD
  • Supports SATA HDDs (SATA interface built-in)
  • Supports IR remote control
  • Supports remote control and live view via Ethernet
  • System auto recovery after power failure
  • Supports manual / timer / motion / remote recording
  • Supports TCP/IP, PPPoE, DHCP and DDNS network connection

H.264 Compression DVMR
Buying a 'CCTV' System does not have to be confusing or expensive! Our range of 'CCTV Cameras', DVR's and IP Cameras offer.
Specifications
Video System
:
NTSC / PAL (auto detection)
Video Input
:
16 channels (composite video signal 1 Vp-p 75Ω BNC)
Video Output
:
Main monitor output (composite video signal 1 Vp-p 75Ω BNC)
Audio Input / Output
:
1 audio input, 1 audio output (Mono)
Maximum Recording Rate (Frame)
:
704×480 pixels with 120 IPS / 704×576 pixels with 100 IPS
Maximum Recording Rate (CIF)
:
352×240 pixels with 480 IPS / 352×288 pixels with 400 IPS
Adjustable Recording Speed (Frame)
:
120, 60, 30, 15 IPS / 100, 50, 25, 12 IPS
Adjustable Recording Speed (CIF)
:
480, 240, 120, 60 IPS / 400, 200, 100, 50 IPS
Multilingual OSD
:
YES
Image Quality Setting
:
Best, High, Normal and Basic
Hard Disk Storage
:
Accommodates 2 SATA HDDs (1 HDD capacity up to 1TB)
SATA Interface
:
Built-in
Quick Search
:
Time / Motion search mode
Recording Mode
:
Manual / Timer / Motion / Remote
Refresh Rate
:
480 IPS for NTSC / 400 IPS for PAL
Multiplex Operation
:
Live display / record (16 channels) / playback (simultaneously up to 4 channels) / backup / network operations
Remote Independent Operation
:
Fully remote independent operation
Motion Detection Area
:
3 pre-defined detection areas selectable
Motion Detection Sensitivity
:
One parameter with four sensitivity levels (High / Normal / Low / Off)
Pre-alarm Recording
:
YES (8 MB)
Backup Device
:
USB DVD writer / USB 2.0 flash drive / Network
USB Interface
:
Front panel * 1
Ethernet
:
10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface
:
Licensed software “Video Viewer” / Internet Explorer or Mozilla Firefox web browser / QuickTime player (5 users access simultaneously)
*Operating System: Windows Vista / XP / 2000; Apple Mac
Network Protocol
:
TCP/IP, PPPOE, DHCP and DDNS
IR Remote Control
:
YES (IR receiver built-in)
PTZ Control
:
YES
Dwell Time (Sequential Channel Switch)
:
Programmable with adjustable dwell time (3 / 5 / 10 / 15 seconds)
Alarm Input / Output
:
16 inputs, 1 output
Picture Zoom
:
2X digital zoom (Live & Playback)
Key Lock (Password Protection)
:
YES
Video Loss Detection
:
YES
Camera Title
:
Supports up to 6 letters
Video Adjustable
:
Hue / Saturation / Contrast / Brightness
Date Display Format
:
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Daylight Saving
:
YES
Power Source (±10%)
:
DC 19V
Power Consumption (±10%)
:
<64 W>
Operating Temperature
:
10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)**
:
430(W) x 65(H) x 338(D)
System Recovery
:
System auto recovery after power failure
Optional Peripherals
:
Keyboard controller

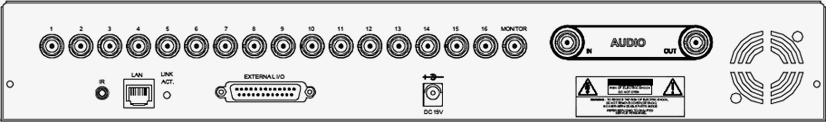

Dimensions
