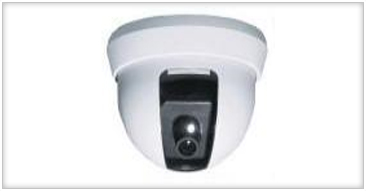

GANZ, CBC: MDC2

Benefits
  • 1/3" IT CCD Color Dome Camera
  • Digital Signal Process Function
  • Line Lock Phase Adjustment
  • Backlight Compensation
  • Automatic Electronic Shutter
  • Automatic Gain control
  • White Balance
  • PAL TV System
  • Compact Light Weight & Stylish Design
  • Sharper & Clearer Image Sensor
Regular Dome Cameras
Enlarge Image
Specifications
TV System
:
PAL
Focal Length
:
3.6mm
Image Sensor
:
1/3 "IT CCD
Effective Element
:
500(H) X 582 (V)
Scanning Frequency (H / V)
:
15.750 KHz / 60 Hz
Iris Range
:
F2.0
Resolution
:
420TVL
Mini. Illumination
:
0.002Lux
S/N Ratio
:
48 DB (AGc OFF)
Gamma Characteristics
:
0.45
Sync. System
:
Internal / L.L.
White Balance
:
ATW
Auto White Balance Range
:
2500K-9700K
Video Output
:
1.0VPP.75 Ω Unbalanced
Back Light Compensation
:
Central Area For DC Iris Lens
Electronic Shutter
:
1/50 to 1/100,000 Sec.
AGC
:
YES
Power Supply
:
DC12V.+10%
Power Consumption
:
2.2 W(Max)
Operating Temp.
:
-10°C to +50°C
Storage Temp.
:
-20°C to +60°C
Dimensions
