AVTECH : AVC 785D


DVR Recoders
Benefits
MPEG4 Technology :
  • Compression format providing crystal clear images with real time performance


Multiplex :
  • Allows live display, record, playback, backup, and network operations at the same time


Remote Independent Operation :
  • Allows you to individually see the live view of a single channel without changing the display setting from AP side


Huge Storage Capacity :
  • Supports up to 3 HDDs, or 2 HDDs + independent disk array


R.E.T.R. (Remote Event Trigger Recording) :
  • Alarm trigger recording will send alerts with images to designated e-mails and the FTP address


Free Upgrade to Advanced Functions :
  • Allows you to upgrade DVR functions without any charges


Long-Recording Hours :
  • 500GB can record more than 104 days (8CH, CIF Normal Quality, 30IPS)


Backup Function :
  • Supports USB flash drive, network & DVD writer backup


Remote Surveillance :
  • Supports remote surveillance up to 5 users simultaneously with licensed software AP and IE browser


Intelligent Motion Trigger Recording :
  • With the advanced functions of motion detection, scheduled motion detection recording (4 different adjustable factors for motion detection sensitivity) and quick search, customized security environments are achieved
  • Supports pre-alarm recording (8MB)


Covert Recording :
  • A mask replaces the live image with a blank screen and the monitor shows nothing, but the recording is still on


A/V Support :
  • Supports 4 audio-in, 2 audio-out to record sounds
  • Supports VGA output to monitor (optional)


General :
  • Supports multi-language OSD
  • Supports IR remote control
  • Systems auto recovery after power failure
  • Supports IR remote control, PTZ camera operations through RS-485, and PTZ Hot Point function
  • Supports daylight saving function
  • Supports manual / timer / motion / alarm / network recording
  • Ensures the authentication of recorded images with Watermark function
  • Supports TCP/IP, PPPoE, DHCP and DDNS network connection

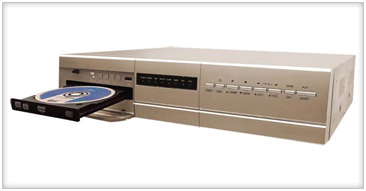

8CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC / PAL (auto detection)
Video Compression Format
:
MPEG4
Video Input
:
8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Loop Out
:
8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Output
:
Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Maximum Recording Rate
:
Frame: 720 × 480 pixels with 60 IPS〈NTSC〉/ 720 × 576 pixels with 50 IPS〈PAL〉
CIF: 352 × 240 pixels with 240 IPS〈NTSC〉/ 352 × 288 pixels with 200 IPS〈PAL〉
Adjustable Recording Speed
:
Frame: 60, 30, 15, 7 IPS / 50, 25, 12, 6 IPS
CIF: 240, 120, 60, 30 IPS / 200, 100, 50, 25 IPS
Image Quality Setting
:
Best, High, Normal, and Basic
Hard Disk Storage
:
IDE type, ATA66, supported HDD 2, support each HDD capacity over 400GB
HDD Quick Cleaning
:
Quick clean up the “index system” of the recorded files. 250GB under 2 seconds
Recording Mode
:
Manual / Timer / Motion / Alarm / Remote
Watermark
:
Yes
Refresh Rate
:
240 IPS for NTSC / 200 IPS for PAL
Multiplex Operation
:
Live display, record, playback, backup and network
Audio I/O
:
4 audio inputs, 2 audio outputs (Mono)
Motion Detection Area
:
16 × 12 grids per camera for all channels
Motion Detect Sensitivity
:
4 adjustable variables with precise calculation for motion detection
Pre-alarm Recording
:
Yes (8MB)
USB Interface
:
Support USB 1.1/ 2.0 flash drives (front panel 1, back panel 1)
Backup Device
:
USB1.1 / 2.0 flash drive backup and network remote backup
Web Transmitting / Compression Format
:
Motion JPEG
Ethernet
:
10/100 Base-T. Support remote control and live view via Ethernet.
Web Interface
:
Support licensed software AP, and IE browser
Remote Alarm Notification
:
E-mail images, and upload images to FTP site’s specific account
Network Connection
:
TCP/IP, PPPoE, DHCP and DDNS
Remote Control
:
Remotely control DVR and PTZ cameras via IR transmitter (RS-485)
PTZ control
:
Support PELCO-D protocol
Dwell Time (Sequential Channel Switch)
:
Programmable with adjustable dwell time
Alarm I/O
:
8 inputs, 1 output
Picture Zoom
:
Support 2X digital zoom function
Key Lock
:
Yes
Video Loss Detection
:
Yes
Camera Title
:
Support up to 6 letters
Video Adjustable
:
Hue／Color／Contrast／ Brightness
Date Display Format
:
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Daylight Saving
:
Yes
Power Source
:
DC 19V
Power Consumption
:
＜64 W
Operating Temperature
:
10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)
:
432mm (W) × 90mm (H) × 326mm (D)
System Recovery
:
System auto recovery after power reconnected
Optional Peripheral
:
Independent disk array ; VGA connector

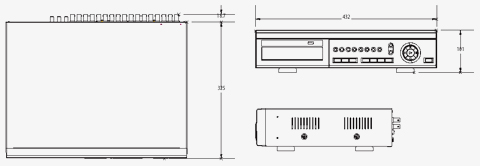

Dimensions
