YOKO : RYK 9824


4CH MJPEG Network DVR
Benefits
  • MJPEG Video compression
  • Various recording modes of manual, schedule and motion detection
  • Record and Play at the same time
  • SATA on board
  • 1 CH Audio in/out
  • USB buck up
  • VGA on board(option)
  • IR remote controller(option)

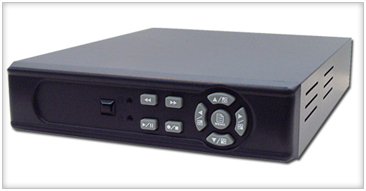

4CH MPEG4 Network DVR
ryk9823
Enlarge Image
Specifications
Video Format
:
NTSC / EIA or PAL / CCIR
Video Compression
:
MJPEG
Video Input
:
4 CH BNC
Video Output
:
1 CH BNC
Video VGA
:
On board (option)
Audio Input
:
1CH RCA
Audio Output
:
1CH RCA
Display Resolution
:
720x480 (NTSC), 720x576 (PAL)
Display Frame Rate
:
Max. 120 / 100 IPS (NTSC / PAL)
Display Division
:
Single, Quad
Recording Resolution
:
Max. 640x224 (NTSC), 640x272 (PAL)
Recording Frame Rate
:
Max.60 / 50 IPS (NTSC / PAL)
Recording Quality
:
High / Normal / Low
Recording Mode
:
Manual / Schedule / Motion Detection
HDD Basic Storage
:
1x3.5” SATA HDD (Max. 750GB)
Alarm Input / Output
:
－
Alarm Triggered Mode
:
Motion Detection, Video Loss
Alarm Action
:
Recording, Sound Alert
Buck Device
:
USB
Post Alarm
:
1 ~ 60 sec
Search Method
:
By Date, Time, Event
Power Supply
:
AC100~240V 50/60 Hz, DC12V / 2.5A
Weight
:
2.5 Kg (without HDD)
Dimensions (WxHxD)
:
195X45X226mm
Operating Environment
:
30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)
Remote Control
:
IR Transmission
Dimensions
ryk9824
