YOKO : RYK 9254


4 CH H.264 MULTIPLEX DVR - 4/8/16CH H.264 MULTIPLEX DVR
Benefits
  • H.264 compression for DVR recording and web transmission
  • Graphic OSD and mouse control(PS/2)
  • Live display, record, backup, playback and network access at the same time
  • DVD writer (optional) and USB device backup
  • Remote view and manage through 16CH client software and IE browser
  • 1 channel audio recording and playback
  • Motion detection with area selecting and sensitivity adjusting by each camera
  • Remote controller support
  • Email notification while event is happening
  • Control all functions of PTZ camera
  • TCP/IP, DHCP, DDNS, Dynamic IP network protocol
  • System auto recovery after power reconnected
  • System auto recovery after power reconnected
  • Manual / event / schedule recording
  • Multi-language OSD: English / Polish / Spanish / Russian /
    French / Turkish / German / Italian / Portuguese / Chinese

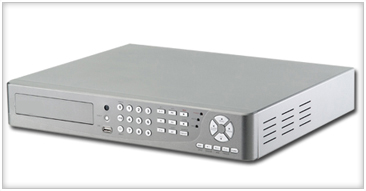

4CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC/PAL auto detection
Video Input
:
4CH BNC
Video Output
:
1CH BNC or VGA
SPOT Output
:
1CH BNC
Audio Input
:
1CH RCA
Audio Output
:
1CH RCA
Sensor
:
4 inputs / 1 outputs
RS-485
:
Pan/Tilt/Zoom camera
Mouse
:
PS/2 mouse
IR Remote Controller
:
YES
HDD Support
:
SATA HDD x 2 (Max. 1TB EA)
DVD Writer
:
optional
Display Division
:
1,4
Digital Zoom
:
2X
Video Compression
:
H.264
Resolution
:
720x480, 720x240, 360x240 (NTSC)
720x576, 720x288, 360x288 (PAL)
Frame Rate
:
60, 120, 120 (NTSC)
50, 100, 100 (PAL)
Quality
:
Fine, Normal, Low
Record Mode
:
Manual, Schedule, Event(motion detection/sensor/video loss)
Pre-Alarm Recording
:
0~5 seconds
Post-Alarm Recording
:
0~60 seconds
Watermark Proof
:
YES
Search Mode
:
Calendar, Time, Event, Block, File, Bookmark
Backup Mode
:
DVD±RW / USB flash driver / Network
Network Compression
:
H.264
Software
:
16CH client viewer / Internet Explorer
Service
:
TCP/IP, SMTP, HTTP, DHCP, DDNS
Firmware Update
:
USB 2.0 device / Network
Dimension
:
430mm (W) x 70mm (H) x 360mm (D)
Power Source
:
DC12V
Dimensions
