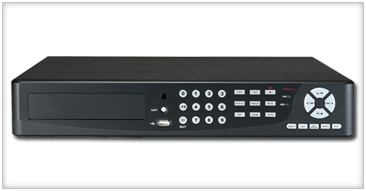

YOKO : RYK 9224


4 CH H.264 MULTIPLEX DVR
Benefits
  • H.264 compression ideal for saving HDD space
  • Real time live display
  • Live display, record, backup, playback and network access simultaneously
  • Picture-in-picture monitoring and 2X digital zoom display
  • Control methods: front panel, USB mouse, IR remote controller, client viewer
  • Intuitive GUI for easy configuration and menu driven operation
  • Pan / Tilt / Zoom camera control
  • Data backup: USB devices, network
  • Event triggered with email notification: motion detection, alarm, video loss
  • Support Internet Explorer with same GUI as DVR site
  • Multi-language OSD
  • Central Management System (CMS) supports up to 16 DVRs
  • 3G/GPRS mobile phone monitoring
4CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC / PAL switch
Video Input
:
4CH BNC
Video Output
:
1CH BNC
SPOT Output
:
1CH BNC
SPOT Output
:
1CH BNC
VGA Output
:
1024x768
Audio Input
:
1CH RCA
Audio Output
:
1CH RCA
Audio Backup
:
YES
Sensor
:
4 input / 1 output
RS-485
:
Pan/Tilt/Zoom camera
USB Port
:
1
Mouse
:
USB mouse
IR Remote Controller
:
YES
HDD Support
:
SATA HDD x 2 (Max. 1TB each)
Display Division
:
1,4
GUI
:
YES
Title
:
14 characters
Digital Zoom
:
2X
Video Compression
:
H.264
Resolution
:
720x480, 720x240, 360x240 (NTSC)
720x576, 720x288, 360x288 (PAL)
Frame Rate
:
30, 60, 120 (NTSC)
25, 50, 100 (PAL)
Quality
:
Highest, High, Normal, Low, Lowest
Record Mode
:
Manual, Schedule, Event(motion detection/sensor)
Pre-Alarm Recording
:
16MB (10 sec)
Post-Alarm Recording
:
1-999 sec
Motion Detection
:
16X12 (sensitivity 1~15)
Watermark Proof
:
N/A
Search Mode
:
Time, Event
Playback Speed
:
fast forward/backward 2X/4X/8X/16X/32X/64X
slow forward/backward 1/2X,1/4X,1/8X,1/16X
play/pause
Backup Mode
:
USB flash driver / Network
Network Compression
:
H.264
Software
:
YES
Internet Explorer
:
YES
Network Users
:
5
Remote Notification
:
Email message
Service
:
TCP/IP, SMTP, DHCP, DDNS, PPPoE
Daylight Saving
:
YES
Password
:
5 users including 1 administrator user authority selectable
Key Lock
:
YES
Keyboard Controller
:
N/A
Firmware Update
:
USB device
Dimension
:
430mm (W) x 70mm (H) x 360mm (D)
Power Source
:
DC12V

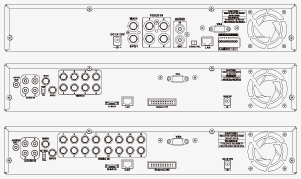

Dimensions
