YOKO : RYK 9317


DVR Recoders
Benefits
  • Simultaneously operate of live, revording, playback, backup, network and copy
  • Displays up to 480/400 frames per second
  • Records up to 480/400 frames per second
  • 4 channels audio recording
  • 4 IDE hard disks support
  • 3 USB 2.0 ports for USB mouse, system upgrade
  • Built-in DVD±RW / CD±RW (option)
  • Dynamic IP, DHCP support
  • S-video, SPOT monitor output, VGA option
  • Pre / Post-alarm recording
16CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC/PAL auto detection
Video Input
:
16CH BNC
Loop
:
16CH BNC
Video Input
:
1CH BNC
Audio Input
:
4CH RCA
Audio Output
:
1CH RCA
Sensor
:
16 inputs / 4 outputs
RS-485
:
Pan/Tilt/Zoom camera
Mouse
:
N/A
IR Remote Controller
:
YES
HDD Support
:
IDE HDD x 4 (Max. 750GB)
CD Writer
:
optional
DVD Writer
:
optional
Display Division
:
1,4,6,7,9,10,13,16
Digital Zoom
:
2X
Video Compression
:
MPEG4
Resolution
:
720x480, 720x240, 360x240 (NTSC), 720x576, 720x288, 360x288 (PAL)
Frame Rate
:
120, 240, 480 (NTSC), 100, 200, 400 (PAL)
Quality
:
Superfine / Fine / Low
Record Mode
:
Manual, Schedule, Event(motion detection/sensor/video loss)
Pre-Alarm Recording
:
0~5 seconds
Post-Alarm Recording
:
0~60 seconds
Watermark Proof
:
YES
Search Mode
:
Calendar, Time, Event, Block, File, Bookmark
Backup Mode
:
CD±RW / DVD±RW / USB flash driver / Network
Network Compression
:
MPEG4
Software
:
16CH client viewer / Internet Explorer
Service
:
TCP/IP, SMTP, HTTP, DHCP, DDNS
Firmware Update
:
USB 2.0 device / Network
Dimension
:
430mm (W) x 90mm (H) x 425mm (D)
Power Source
:
DC12V
SPOT Output
:
1CH BNC

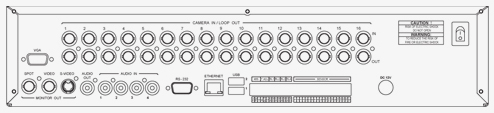

Dimensions
